You've collected survey responses. Now you're staring at a spreadsheet of raw data, wondering how to turn it into insights anyone can understand.
The right visualization makes patterns obvious, reveals unexpected findings, and communicates results persuasively. The wrong one obscures meaning and wastes your audience's time.
This guide walks through exactly how to visualize every common survey question type—from multiple choice to Likert scales to Net Promoter Score—with specific chart recommendations, examples, and common pitfalls to avoid.
Why Survey Data Visualization Matters
Raw survey data in tables is hard to parse. Consider: "Question 3 responses: Strongly Agree (87), Agree (142), Neutral (43), Disagree (21), Strongly Disagree (7)."
Now compare to a horizontal bar chart showing 76% agree or strongly agree. The insight is instant.
Visualization benefits:
- Speed: Trends visible at a glance vs. minutes of table scanning
- Comparison: Differences between segments immediately apparent
- Persuasion: Stakeholders retain visual insights better than numbers
- Discovery: Patterns you'd miss in raw data become obvious
The Survey Question → Chart Type Map
Different question types require different visualizations. This decision tree guides you to the right choice.
| Survey Question Type | Best Visualization | Alternative |
|---|---|---|
| Single choice (3-6 options) | Bar chart or pie chart | Donut chart |
| Single choice (7+ options) | Horizontal bar chart | Sorted list with percentages |
| Multiple choice (select all) | Horizontal bar chart | Sorted list |
| Likert scale (5-7 point) | Diverging stacked bar | Stacked bar chart |
| Rating scale (1-10) | Bar chart or histogram | Icon/star display |
| NPS (0-10 rating) | NPS score + stacked bar | Distribution histogram |
| Ranking questions | Grouped bar chart | Bump chart |
| Numeric/open-ended | Histogram or word cloud | Box plot (numeric) |
| Demographic breakdown | Grouped/stacked bar | Small multiples |
Visualizing Multiple Choice Questions
Single-Choice Questions (Pick One)
Example question: "What is your primary role?"
- Manager (142 responses, 47%)
- Individual Contributor (98 responses, 33%)
- Executive (41 responses, 14%)
- Other (19 responses, 6%)
Best Choice: Bar Chart
Bar charts make comparisons instantly clear. Sort by response count (descending) unless there's a natural order (like experience levels).
Horizontal bars work best for categories with longer names
Best practices:
- Include both count and percentage in labels
- Sort by size (largest first) for clarity
- Use consistent color unless highlighting a specific category
- Add total sample size (n=300) in title or subtitle
Create professional bar charts quickly with 5of10.com's bar chart tool.
Alternative: Pie Chart (3-5 Options Only)
Pie charts work when you have 3-5 options and want to emphasize proportions of a whole.
When to use:
- One category dominates (>50%)
- Showing "parts of a whole" is the key message
- 5 or fewer categories
When NOT to use:
- More than 6 slices (becomes unreadable)
- Similar-sized segments (hard to compare angles)
- Need precise value comparison
Pie charts work best with 3-5 clearly different proportions
Multiple-Choice Questions (Select All That Apply)
Example question: "Which features would you like to see? (Select all that apply)"
These questions generate non-exclusive responses—percentages add up to more than 100% since respondents can select multiple options.
Best Choice: Horizontal Bar Chart
Show each option as a percentage of total respondents (not percentage of total selections).
Example calculation:
- Total respondents: 300
- "Export to PDF" selected: 187 times = 62%
- "Dark mode" selected: 142 times = 47%
- "Mobile app" selected: 98 times = 33%
Critical: Label clearly: "% of respondents who selected" (not "% of responses").
Visualizing Likert Scale Questions
Likert scales measure agreement, satisfaction, or frequency on a 5 or 7-point scale.
Example: "I am satisfied with the product."
- Strongly Disagree | Disagree | Neutral | Agree | Strongly Agree

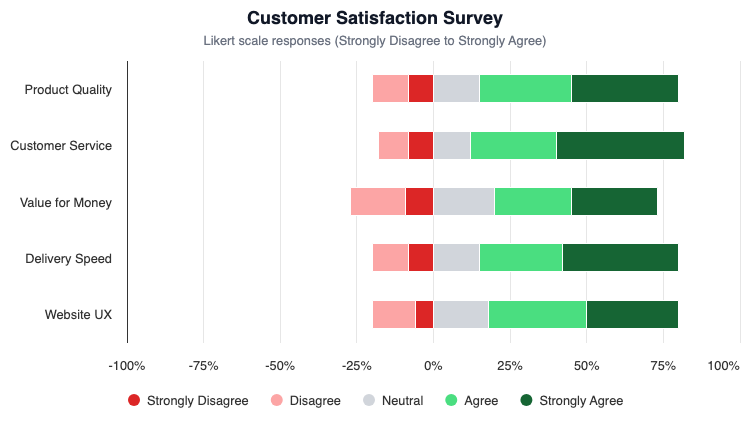

Best Choice: Diverging Stacked Bar Chart
This specialized chart centers neutral responses and shows positive/negative balance clearly.
Structure:
- Negative responses (Strongly Disagree, Disagree) stack left from center
- Neutral responses split at center
- Positive responses (Agree, Strongly Agree) stack right from center
Color strategy:
- Negative: Red/orange shades
- Neutral: Gray
- Positive: Blue/green shades
Why this works: The visual balance immediately shows whether sentiment is positive, negative, or mixed. A bar extending mostly right means positive consensus.
Alternative: Stacked Bar Chart
A standard 100% stacked bar shows all responses in order. Less intuitive than diverging, but simpler to create.
Best practices:
- Maintain consistent color coding across questions
- Put "Strongly Agree" on right, "Strongly Disagree" on left
- Include percentage labels on segments >10%
- Show combined positive % (Agree + Strongly Agree) in title
Reporting Top-2-Box and Bottom-2-Box
Common metric: combine "Agree" + "Strongly Agree" = Top-2-Box score.
Example title: "76% agree or strongly agree the product is easy to use (n=300)"
This simplifies a 5-point scale into a single, actionable metric.
Visualizing Rating Questions
Star Ratings (1-5 stars)
Example question: "How would you rate your overall experience?"
Visual Display: Icon Charts
Show the average rating using filled/unfilled stars or other icons.
Example: ★★★★☆ 4.2 out of 5 (based on 342 ratings)
Icon charts make ratings instantly understandable
Create professional rating displays with 5of10.com's icon chart tool—perfect for survey results and reviews.

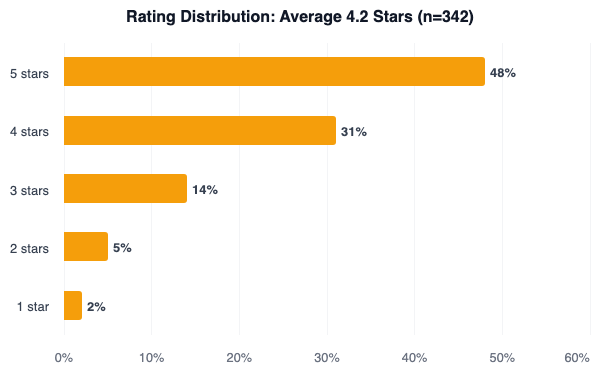

Distribution Chart: Horizontal Bars
For detailed analysis, show how many people gave each rating:
- 5 stars: 48% (164 responses)
- 4 stars: 31% (106 responses)
- 3 stars: 14% (48 responses)
- 2 stars: 5% (17 responses)
- 1 star: 2% (7 responses)
This reveals distribution patterns the average hides (bimodal, skewed, etc.).
Net Promoter Score (NPS)
Question: "How likely are you to recommend us to a friend? (0-10)"
NPS Calculation:
- Promoters (9-10): 45%
- Passives (7-8): 35%
- Detractors (0-6): 20%
- NPS = 45% - 20% = +25
Best Visualization: Large NPS Score + Distribution
Primary element: Large, prominent NPS number with context
Example:
- NPS: +25 (↑ 8 points vs. last quarter)
- n=342 responses

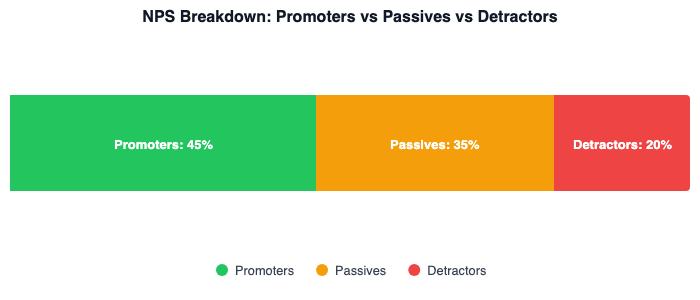

Secondary element: Stacked bar showing Promoters/Passives/Detractors breakdown with color coding (green/yellow/red).
Tertiary element (optional): Histogram showing full 0-10 distribution to identify patterns.
Comparing Survey Results Across Segments
Often you need to compare how different groups responded—by department, age, location, or customer tier.
Grouped Bar Charts
Use when: Comparing 2-4 groups across multiple questions or categories.
Example: Satisfaction ratings compared across three departments.
Structure:
- X-axis: Survey questions or categories
- Y-axis: % Agree or average rating
- Bar groups: One bar per segment, clustered by question
Best practices:
- Consistent colors for each segment across all questions
- Include legend or direct labels
- Limit to 3-4 segments (more becomes cluttered)
Small Multiples
Use when: Comparing many segments or complex data.
Create the same chart for each segment, arranged in a grid. This makes patterns across groups instantly visible.
Example: Customer satisfaction Likert responses shown as separate diverging bars for each region (West, South, Midwest, Northeast, International).
Visualizing Open-Ended Responses
Word Clouds
Best for: Quick visual summary of common themes in text responses.
Limitations:
- No context (words appear alone)
- Can be misleading (big words may not be most meaningful)
- Not suitable for nuanced analysis
Better alternative: Theme-based bar chart.

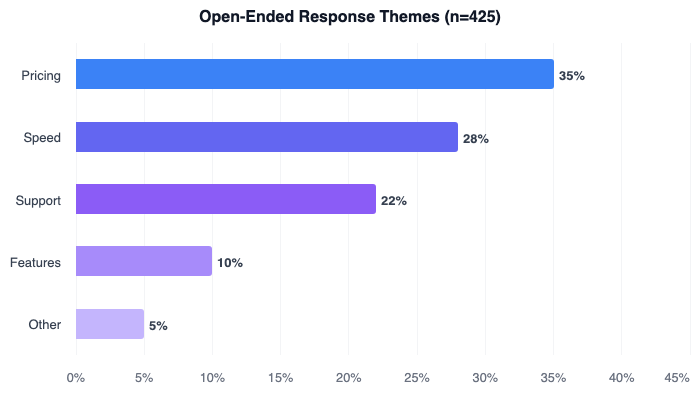

Categorized Bar Charts
Manually code open-ended responses into themes, then visualize theme frequency.
Example process:
- Read through all responses
- Identify recurring themes (e.g., "Price concerns," "Feature requests," "Customer service issues")
- Tag each response with theme(s)
- Count theme occurrences
- Create bar chart of themes
This provides actionable insights word clouds can't deliver.
Survey Visualization Best Practices
1. Always Show Sample Size
Include "(n=342)" in every chart title or subtitle. Sample size affects confidence in results.
Example: "76% would recommend our service (n=342 customers)"
2. Report Non-Response Rates
If 20% of respondents skipped a question, mention it. High non-response may indicate a problematic question.
3. Use Percentages, Not Just Counts
Raw counts are hard to interpret without context. "187 selected Option A" means little without knowing total respondents.
Better: "62% selected Option A (187 of 300 respondents)"
4. Maintain Consistent Scales
If comparing satisfaction across multiple questions, use the same Y-axis scale (e.g., 0-100%) so visual heights are comparable.
5. Order Matters
For unordered categories: Sort by frequency (descending)
For ordered scales: Maintain logical order (Strongly Disagree → Strongly Agree, not alphabetical)
6. Color Strategically
- Semantic colors: Green=positive, Red=negative, Gray=neutral
- Highlight key findings: Use bright color for important category, gray for others
- Consistency: Same segments get same colors across charts
7. Add Context and Comparisons
Don't just show current results. Add context:
- vs. previous survey period
- vs. target/benchmark
- vs. industry average
Example: "NPS: 42 (↑12 vs. Q3, above industry avg of 35)"
Common Survey Visualization Mistakes
Mistake 1: Using 3D or Exploded Pie Charts
Problem: 3D perspective distorts proportions. Exploded slices make comparison harder.
Fix: Stick to 2D charts with clear, flat segments.
Mistake 2: Showing Too Many Response Options
Problem: A pie chart with 12 slices is unreadable.
Fix: Group small categories into "Other" or switch to horizontal bar chart.
Mistake 3: Inconsistent Likert Scale Colors
Problem: Using different colors for "Agree" across questions creates confusion.
Fix: Establish a standard color scheme and apply it across all Likert questions in the report.
Mistake 4: Missing the Story
Problem: Showing charts without interpretation forces readers to figure out meaning.
Fix: Add clear headlines that state the insight: "Customer Satisfaction Jumped 23% After Redesign" (not "Q4 Customer Satisfaction Results").
Mistake 5: Cherry-Picking Favorable Results
Problem: Only showing positive findings misleads stakeholders.
Fix: Report comprehensively. Transparency builds trust and enables better decisions.
Tools for Creating Survey Visualizations
Fastest: 5of10.com
For quick, professional survey charts without software installation:
- Bar charts - Response distributions and comparisons
- Pie charts - Part-to-whole for 3-5 options
- Icon charts - Star ratings and visual ratings
- Progress bars - Completion rates and goals
No signup required, instant export as PNG or SVG.
Survey Platform Built-Ins
Most survey tools (SurveyMonkey, Typeform, Google Forms) have basic visualization. They're convenient but limited in customization.
Spreadsheet Tools
Excel and Google Sheets offer full control but require more setup. Good for complex analyses with custom calculations.
Specialized Analytics Tools
For large-scale survey programs, consider Qualtrics, Tableau, or Looker for advanced analytics and automated reporting.
Step-by-Step: Visualizing a Complete Survey
Let's walk through a realistic customer satisfaction survey with 5 questions.
Question 1: Overall Satisfaction (Likert 5-point)
Visualization: Diverging stacked bar
Headline: "83% of customers satisfied or very satisfied (n=425)"
Question 2: Would Recommend? (NPS 0-10)
Visualization: Large NPS score card + distribution bar
Headline: "NPS: +38 (↑15 vs. Q3)"
Question 3: Feature Priorities (Multiple choice, select all)
Visualization: Horizontal bar chart, sorted by frequency
Headline: "Mobile app most requested feature (62%)"
Question 4: Service Rating (1-5 stars)
Visualization: Icon display + distribution bars
Headline: "Average rating: 4.3/5 stars"
Question 5: Open Feedback (Text)
Visualization: Categorized themes bar chart
Headline: "Top 3 themes: Pricing (35%), Speed (28%), Support (22%)"
Presenting Survey Results
For Executives
- Lead with key metric (NPS, satisfaction %, etc.)
- Show trends over time
- Highlight top 3 insights
- Recommend specific actions
For Teams
- Provide full breakdown by question
- Include segment comparisons
- Share representative open-ended responses
- Discuss methodology and limitations
For Stakeholders
- Focus on changes vs. previous period
- Contextualize with benchmarks
- Be transparent about sample size and response rate
- Provide written summary alongside visuals
Pro Tip: Create a one-page executive summary with only the 3-4 most important charts, then provide detailed appendix for those wanting deeper analysis.
Conclusion
Effective survey visualization transforms data into decisions. The key is matching question type to appropriate chart, maintaining consistency, and always providing context.
Start with the fundamental principle: every visualization should answer a specific question faster and clearer than a table could. If it doesn't, simplify or try a different approach.
Use the question type mapping table in this guide as your reference. Test your visualizations with colleagues—if they immediately grasp the key insight, you've succeeded.
Ready to visualize your survey results? Use 5of10.com's free chart tools to create professional visualizations in minutes—no design skills or software required.
Related Resources:
