A poorly designed dashboard overwhelms users with data. A well-designed dashboard delivers instant clarity, enables quick decisions, and becomes an indispensable business tool.
The difference? Following proven dashboard design principles that balance information density with usability, aesthetics with function, and comprehensiveness with focus.
This comprehensive guide covers everything you need to design effective dashboards—from fundamental principles to advanced techniques used by industry leaders like Stripe, Netflix, and Datadog.
What Makes a Dashboard Effective?
An effective dashboard is not just a collection of charts. It's a decision-making tool that transforms raw data into actionable insights at a glance.
The Three Core Principles
1. Clarity Over Complexity
The best dashboards make complex data simple, not the other way around. Every element should have a clear purpose. If a user asks "What am I looking at?" you've failed.
2. Action Over Information
Data without action is noise. Effective dashboards guide users to decisions and next steps, not just present numbers.
3. Speed Over Completeness
Users should grasp key insights in under 5 seconds. Comprehensive detail matters less than fast comprehension for primary metrics.
The 5-Second Test: Show your dashboard to someone unfamiliar with it for 5 seconds, then hide it. Ask them: "What were the key metrics? What's the status?" If they can't answer, simplify.
The Dashboard Hierarchy: Information Architecture
Information architecture determines how users navigate and understand your dashboard. A clear hierarchy prevents cognitive overload.
The F-Pattern Layout
Eye-tracking studies consistently show users scan dashboards in an F-pattern: top to bottom, left to right, with decreasing attention as they move down and right.
Apply this principle:
- Top-left: Most critical KPI or status indicator
- Top-row: Primary metrics (3-5 key numbers)
- Middle section: Trend charts and time-series data
- Bottom section: Detailed breakdowns and tables
The Grid System
Professional dashboards use consistent grid systems—typically 12 or 16 columns. This creates visual rhythm and makes layout decisions systematic rather than arbitrary.
Grid benefits:
- Visual consistency across sections
- Easier responsive adaptation
- Professional, polished appearance
- Faster design iteration
Chart Selection for Dashboards
The wrong chart type is the fastest way to ruin a dashboard. Each metric needs the visualization that communicates it most efficiently.
Key Metric Cards

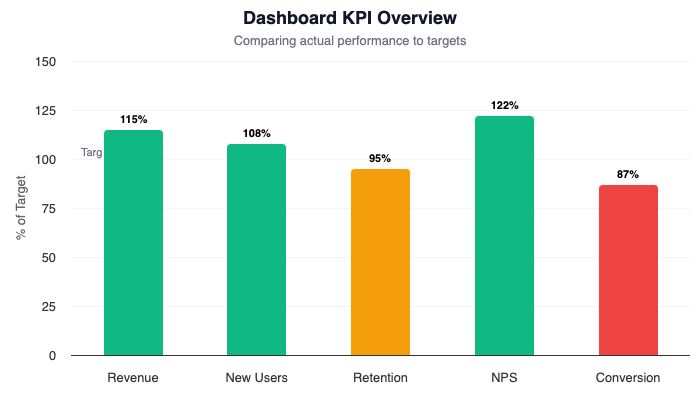

For single-number KPIs (total revenue, active users, conversion rate), use large, prominent number displays with context.
Essential elements:
- Large, readable number (the metric)
- Clear label (what it measures)
- Comparison context (vs. last period, vs. target)
- Trend indicator (up/down arrow with percentage)
- Sparkline (optional micro-chart showing recent trend)
Create clean metric displays with 5of10.com's badge and number tools for professional-looking KPI cards.
Trend Visualization

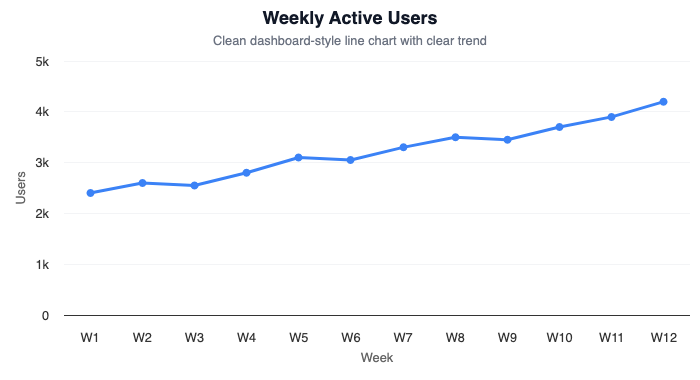

Time-series data (sales over time, traffic trends, performance metrics) demand line charts. They're the most efficient way to show change over time.
Dashboard-specific guidelines:
- Limit to 2-3 lines per chart (more creates clutter)
- Use thick lines (2-3px minimum) for legibility
- Direct labeling beats legends (label lines directly)
- Include key event markers (product launches, campaigns)
Build responsive line charts with the 5of10.com line chart tool—optimized for dashboard display.
Comparisons
Comparing categories (products, regions, channels) requires bar charts. They enable instant visual comparison better than any alternative.
Best practices:
- Sort by value (descending) unless order matters
- Horizontal bars for long category names
- Consistent color unless highlighting specific categories
- Include data labels for precise values

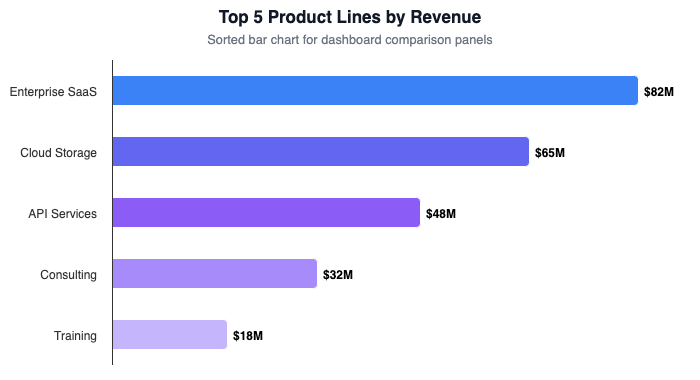

Horizontal bar charts work best for comparing categories with long names
Create professional bar charts with 5of10.com's bar chart maker—perfect for dashboard layouts.
Progress & Goals
Progress toward targets, completion rates, and goal tracking need specialized visualizations: progress bars, gauges, or goal charts.
When to use each:
| Visualization | Best For | Example |
|---|---|---|
| Progress Bar | Linear progress (0-100%) | Project completion, quota attainment |

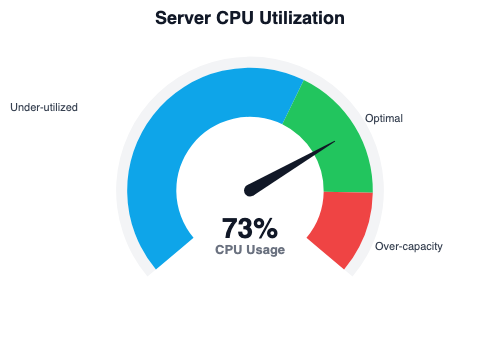

| Gauge/Meter | Performance within range | Server CPU, customer satisfaction score |
| Goal Chart | Current vs. target with context | Revenue vs. annual target, headcount vs. plan |
Design progress indicators with 5of10.com's progress bar tool and gauge chart creator.
Part-to-Whole

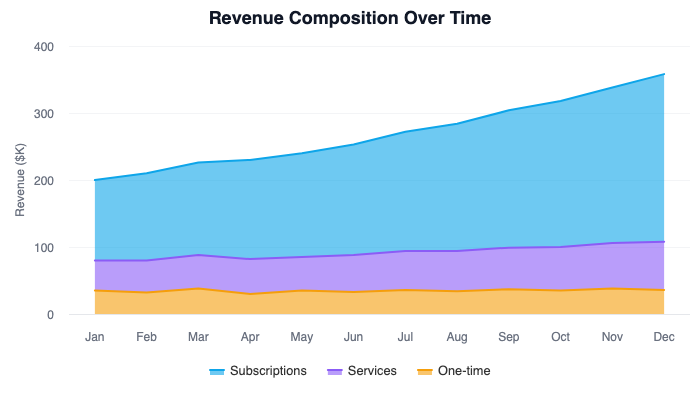

Budget allocation, market share, traffic sources—any "where does this come from?" question needs part-to-whole visualization.
Dashboard-appropriate options:

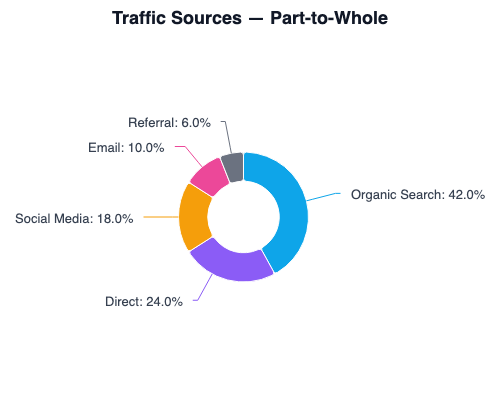

- Donut chart: 3-5 categories, emphasis on proportions
- Treemap: Many categories, hierarchical data
- Stacked bar (100%): Comparing compositions across groups
Never use pie charts with more than 6 slices on a dashboard—they become unreadable.
Color Strategy for Dashboards
Color is a communication tool, not decoration. Effective dashboard color systems follow strict hierarchies.
The Three-Tier Color System
Tier 1: Semantic Colors (Status)
- Success/Positive: Green (#10b981, #22c55e)
- Warning/Caution: Yellow/Orange (#f59e0b, #f97316)
- Error/Negative: Red (#ef4444, #dc2626)
- Info/Neutral: Blue (#3b82f6, #6366f1)
Reserve these colors exclusively for their semantic meaning. Don't use red for a brand element if it might confuse users about errors.
Tier 2: Data Visualization Colors
Use a colorblind-safe palette with 4-6 distinct colors for data series in charts:
- Primary: #0ea5e9 (Cyan-blue)
- Secondary: #8b5cf6 (Purple)
- Tertiary: #f59e0b (Orange)
- Quaternary: #ec4899 (Pink)
Ensure all colors pass WCAG AA contrast standards (4.5:1 for text, 3:1 for UI components).
Tier 3: UI/Background Colors
- Neutral grays for backgrounds, borders, non-critical text
- White or very light gray for card backgrounds
- Slightly darker gray for overall dashboard background
Dark Mode Dashboards
For operational dashboards used in low-light environments (NOCs, trading floors), dark mode reduces eye strain.
Dark mode principles:
- Background: #0f172a to #1e293b (dark blue-gray)
- Cards: #1e293b to #334155 (lighter, but still dark)
- Text: #f1f5f9 (off-white, never pure white)
- Reduce chart color saturation by 15-20% for dark backgrounds
- Increase border/separator opacity to maintain structure
Layout Patterns That Work
The Executive Dashboard
Purpose: High-level overview for decision-makers
Structure:
- Row 1: 4-5 key metrics in prominent cards
- Row 2: 2-3 trend charts (revenue, users, conversions)
- Row 3: 2 comparison charts (products, regions, channels)
- Row 4: Detailed table (top opportunities or risks)
Design emphasis: Clarity, high-level trends, no clutter
The Operational Dashboard
Purpose: Real-time monitoring and alerts
Structure:
- Top banner: Critical alerts and system status
- Left column: Real-time metrics with thresholds
- Center: Time-series charts (last hour, last day)
- Right column: Recent events log
Design emphasis: Immediate status recognition, prominent alerts
The Analytical Dashboard
Purpose: Deep exploration for analysts
Structure:
- Top: Filter controls and date range selector
- Upper section: Summary metrics
- Middle section: Multiple detailed charts (4-6)
- Bottom section: Data tables with export options
Design emphasis: Flexibility, drill-down capability, data density
Responsive Dashboard Design
Dashboards must work on laptops, tablets, and increasingly on mobile devices. Responsive design isn't optional.
The Mobile-First Dashboard Approach
Mobile (< 768px):
- Stack all elements vertically
- Show only critical metrics (3-4 cards)
- Simplify charts (remove secondary data)
- Large touch targets (44px minimum)
Tablet (768px - 1024px):
- 2-column grid
- Show primary and secondary metrics
- Abbreviated chart labels
Desktop (> 1024px):
- Full grid layout (3-4 columns)
- All metrics and charts visible
- Detailed labels and legends
Dashboard UX Best Practices
Loading States
Dashboards often pull data from multiple sources. Poor loading UX frustrates users.
Best practices:
- Show skeleton screens (content placeholders) immediately
- Load above-the-fold content first
- Display stale data with "updating..." indicator rather than blank charts
- Show progress indicators for long-running queries
Empty States
When there's no data to display, blank space is confusing.
Effective empty states:
- Explain why it's empty ("No data for selected date range")
- Provide actionable next steps ("Adjust filters" or "Import data")
- Use friendly illustrations, not stark emptiness
Interactivity
Strategic interactivity enhances dashboards; excessive interaction clutters them.
Essential interactions:
- Hover tooltips: Show precise values without cluttering charts
- Click-to-filter: Click a chart element to filter entire dashboard
- Zoom/drill-down: Click a summary metric to see details
- Date range picker: Adjust time period
Avoid:
- Requiring interaction to see basic information
- Animations that delay information display
- Hover-dependent features without keyboard alternatives
Common Dashboard Design Mistakes
Mistake 1: Too Many Metrics
Problem: Displaying 20+ metrics creates analysis paralysis. Users don't know what to focus on.
Fix: Limit primary dashboards to 5-7 key metrics. Create secondary "deep-dive" dashboards for detail.
Mistake 2: Inconsistent Update Frequencies
Problem: Mixing real-time, hourly, and daily metrics without indicating refresh rates confuses users.
Fix: Display "Last updated" timestamps on each card. Group metrics by update frequency when possible.
Mistake 3: No Context for Numbers
Problem: Showing "1,247 signups" means nothing without comparison. Is that good? Bad? Improving?
Fix: Always provide comparison context—vs. last period, vs. target, vs. same period last year.
Mistake 4: Ignoring the Grid
Problem: Randomly sized and positioned elements look amateur and make scanning difficult.
Fix: Use a consistent grid system. All cards should align to grid columns.
Mistake 5: Color Overload
Problem: Using 10 different colors makes the dashboard look like a candy store and removes the ability to use color for emphasis.
Fix: Limit to 3-4 main colors plus semantic status colors (red/yellow/green).
Dashboard Accessibility
Dashboards must be usable by people with visual, motor, and cognitive disabilities.
Essential Accessibility Features
- Keyboard navigation: All interactive elements accessible via Tab key
- Screen reader support: Proper ARIA labels on charts and metrics
- Colorblind-safe palettes: Never rely on color alone to convey information
- Sufficient contrast: 4.5:1 minimum for text
- Readable font sizes: 14px minimum, 16px preferred
- Alternative data access: Provide data tables for chart content
Learn more in our comprehensive guide on accessibility in data visualization.
Performance Optimization
Slow dashboards don't get used. Performance is a design feature.
Key Optimizations
- Lazy loading: Load below-the-fold content after initial render
- Data aggregation: Pre-aggregate data on backend, don't compute in browser
- Virtualization: For long tables, only render visible rows
- Chart simplification: Limit data points (1,000 max per chart)
- Caching: Cache dashboard data for appropriate duration
Performance budget: Initial load < 2 seconds, interaction response < 100ms.
Testing Your Dashboard
The Dashboard Design Checklist
- ☐ Key insights graspable in under 5 seconds
- ☐ Most important metrics in top-left position
- ☐ No more than 7 primary metrics visible
- ☐ All metrics have comparison context
- ☐ Consistent grid alignment throughout
- ☐ Colorblind-safe palette used
- ☐ Charts have appropriate types for data
- ☐ No chart has more than 3-4 data series
- ☐ All text is 14px or larger
- ☐ Loading states implemented
- ☐ Empty states handled gracefully
- ☐ Responsive on mobile, tablet, desktop
- ☐ Keyboard navigable
- ☐ Last updated timestamps visible
- ☐ Loads in under 2 seconds
User Testing
Watch real users interact with your dashboard. You'll discover issues no checklist catches.
Test questions:
- "What's the most important thing on this screen?"
- "Is [specific metric] improving or declining?"
- "What action would you take based on this data?"
- "Find the top-performing [product/region/campaign]."
If users struggle or hesitate, redesign those elements.
Dashboard Design Tools & Resources
For creating dashboard components:
- 5of10.com - 60+ free chart and visualization tools, perfect for building dashboard elements
- Gauge charts - Progress and performance indicators
- Progress bars - Goal tracking visualizations
- Icon charts - Ratings and status displays
Dashboard design inspiration:
- Dribbble "dashboard" search - Design patterns and ideas
- Datadog, Grafana, Looker - Industry-leading dashboard UX
- Stripe Dashboard - Exemplary financial dashboard design
Conclusion
Effective dashboard design is the intersection of data science, visual design, and user experience. The principles in this guide—clear hierarchy, appropriate chart selection, strategic color use, and responsive layout—form the foundation of dashboards that inform, engage, and drive action.
Start with your users' key questions. Design to answer those questions instantly. Remove everything that doesn't serve that goal. Test with real users. Iterate based on feedback.
The best dashboards become invisible—users see insights, not design. That's the standard to aim for.
Ready to build your dashboard? Use 5of10.com's free tools to create professional charts and visualizations—no signup required, optimized for dashboard display.
