Chart Colors That Convert: A Science-Backed Guide to Data Visualization Colors

Color is the silent storyteller in every chart you create. The right palette guides attention, reinforces meaning, and makes data memorable. The wrong colors create confusion, strain eyes, and undermine your message.

This isn't about making charts "pretty." It's about using color strategically to help your audience understand data faster and remember it longer. Backed by research in visual perception and color psychology, this guide gives you the principles and practical tools to choose colors that work.

The Science of Color in Data Visualization

Before diving into palettes, understanding how humans perceive color helps explain why certain choices work and others fail.

Pre-Attentive Processing

Your brain processes color before conscious thought kicks in. This "pre-attentive" processing happens in under 250 milliseconds. When a single bar in a chart is orange while others are blue, you notice it instantly—no effort required.

This is why color is so powerful for highlighting: it leverages your brain's built-in attention system. But it also means poor color choices create confusion at a subconscious level, making charts feel "wrong" even when viewers can't articulate why.

Color Constancy Limitations

Humans are surprisingly bad at remembering exact colors or comparing colors that aren't adjacent. This has practical implications:

• Don't require viewers to match a legend color to a distant chart element
• Place labels directly on or near data points when possible
• Use position and labels as primary encoding; color as secondary

Simultaneous Contrast

Colors appear different depending on surrounding colors. A medium gray looks darker against white and lighter against black. The same blue appears more vibrant next to orange than next to purple.

For charts, this means testing your colors in context, not in isolation. A palette that looks great in a color picker might look muddy or clashing when applied to actual data.

Three Types of Data, Three Types of Palettes

Different data types require different color approaches. Using the wrong palette type is one of the most common visualization mistakes.

1. Categorical Data → Qualitative Palettes

When colors represent distinct categories with no inherent order (like product types, regions, or teams), you need colors that are equally distinct from each other.

Characteristics:

• No color should appear "more important" than others
• Maximum perceptual distance between colors
• Typically 3-8 colors (more becomes hard to distinguish)

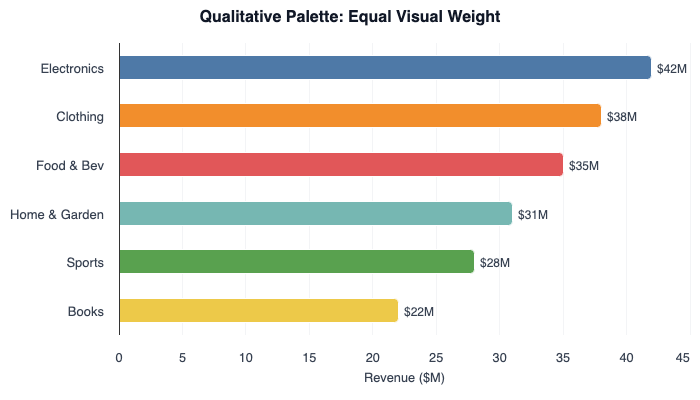

Tableau 10 subset: A well-tested qualitative palette

2. Sequential Data → Sequential Palettes

When colors represent ordered values from low to high (like temperature, percentage, or intensity), you need a single-hue or multi-hue progression.

Characteristics:

• Clear visual progression from light to dark (or vice versa)
• Perceptually uniform steps between values
• Works well for heatmaps, choropleth maps, and gradients

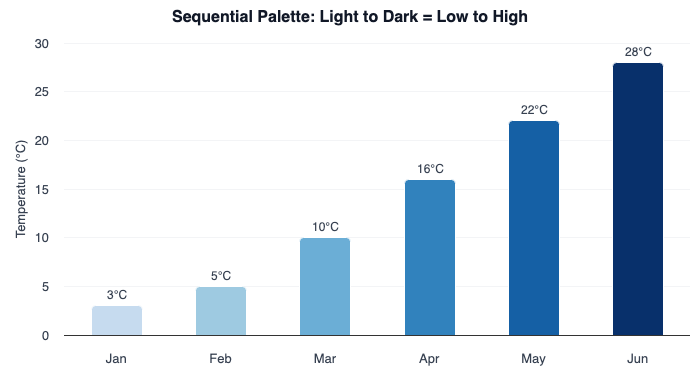

Blues sequential palette: Light to dark for low to high

3. Diverging Data → Diverging Palettes

When data has a meaningful midpoint (like positive/negative, above/below average, or agree/disagree), you need two contrasting hues that meet at a neutral center.

Characteristics:

• Two distinct hues for extremes
• Neutral color (often white or light gray) at midpoint
• Equal visual weight on both sides

Red-Yellow-Green diverging: Classic for positive/negative

Color Psychology in Charts

Colors carry cultural and psychological associations. While these aren't universal, in Western business contexts certain patterns are strong enough to leverage—or avoid.

Common Color Associations

Color	Common Associations	Use In Charts
Green	Growth, positive, go, nature, money	Profits, increases, success metrics
Red	Warning, negative, stop, urgent, loss	Losses, decreases, alerts, attention
Blue	Trust, calm, professional, stability	Default/neutral data, corporate contexts
Orange	Energy, warmth, caution, creativity	Highlighting, call-to-action, secondary emphasis
Purple	Premium, creative, wisdom, luxury	Special categories, premium segments
Gray	Neutral, secondary, background	De-emphasized data, baselines, context

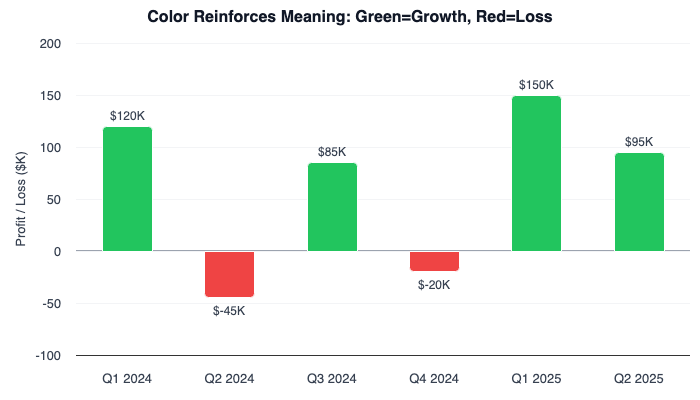

Using Psychology Strategically

Reinforce, don't contradict: A chart showing "Our biggest losses" in bright green confuses viewers. Their brains see "green = good" while the data says "bad."

Use sparingly for emphasis: When everything is colorful, nothing stands out. Use bold colors like red and orange for what truly needs attention; gray out the rest.

Consider context: In finance, red for losses is universal. In healthcare, red might mean critical. In nature content, green is expected. Match your audience's mental model.

Accessibility: Designing for Everyone

Approximately 8% of men and 0.5% of women have some form of color vision deficiency. Creating accessible charts isn't just ethical—it's practical. Inaccessible charts mean inaccessible insights.

Types of Color Blindness

• Deuteranopia (green-blind): Most common. Red and green appear similar.
• Protanopia (red-blind): Red appears darker and more brown.
• Tritanopia (blue-blind): Rare. Blue and yellow confusion.

Colorblind-Safe Strategies

1. Don't rely on color alone: Use patterns, labels, or position as redundant encoding
2. Vary lightness, not just hue: Colors that differ in brightness remain distinct even without color perception
3. Use colorblind-safe palettes: Blue-orange, blue-purple, and viridis palettes work for most types
4. Test your charts: Use tools like Color Oracle or Coblis to simulate color blindness

Safe Palette Examples

Paul Tol's colorblind-safe qualitative palette

Building Your Chart Color System

Random color choices lead to inconsistent visuals. A systematic approach creates cohesion across all your charts.

Start with Your Brand

Your brand's primary and secondary colors are the foundation. But brand colors alone rarely make a complete chart palette—you need to extend them.

1. Primary brand color: Use for the most important data series or highlights
2. Secondary brand color: Use for secondary data or contrast
3. Extended palette: Generate harmonious additional colors for multi-series charts
4. Neutral gray: Use for axes, labels, de-emphasized data

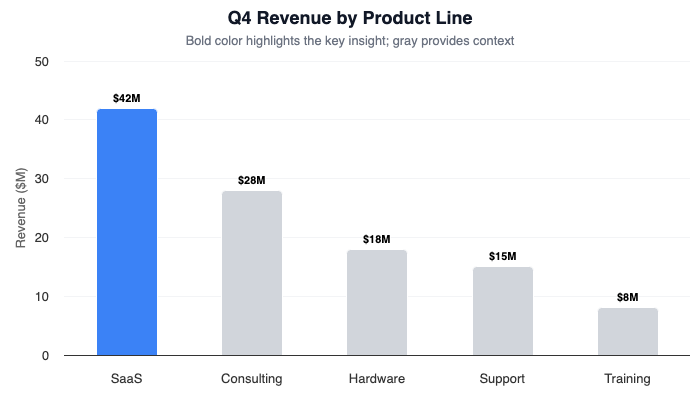

The Hierarchy of Attention

Not all data deserves equal visual weight. Create a color hierarchy:

• Hero color (saturated, bold): The one thing you want viewers to notice first
• Supporting colors (medium saturation): Important but secondary data
• Background colors (low saturation/gray): Context and reference data

This hierarchy guides the eye. The most important insight pops; supporting data provides context without competing for attention.

Consistency Rules

Once you assign a color to a category, that assignment should persist across all charts:

• If "Product A" is blue in one chart, it's blue in every chart
• If "Q1" is the leftmost/first in one chart, maintain that order
• If red means "warning," never use it for positive metrics

Consistency reduces cognitive load. Viewers who've seen one of your charts can interpret subsequent ones faster.

Practical Color Selection Process

Step 1: Identify Data Type

Is your data categorical, sequential, or diverging? This determines your palette type.

Step 2: Count Categories

How many distinct colors do you need? For more than 7-8 categories, consider grouping or using an alternative visualization.

Step 3: Check Context

What colors carry meaning in your domain? Finance, healthcare, and tech have different conventions.

Step 4: Apply Hierarchy

What should viewers notice first? Assign your boldest color there; gray out less important elements.

Step 5: Test Accessibility

Run your palette through a colorblind simulator. Ensure sufficient contrast for legibility.

Step 6: Test in Context

Apply colors to actual data. Does the palette work at the final display size? On both light and dark backgrounds?

Common Color Mistakes

Mistake #1: Rainbow Palettes for Sequential Data

Rainbows are categorical—no inherent order from red to violet. Using them for sequential data (like a heatmap) makes high and low values equally eye-catching, obscuring the pattern.

Fix: Use single-hue or perceptually ordered multi-hue palettes (like viridis).

Mistake #2: Too Many Colors

When a chart has 15 different colors, none of them are memorable. The chart becomes a visual puzzle instead of a communication tool.

Fix: Group small categories into "Other." Use direct labeling. Limit to 5-7 distinct colors maximum.

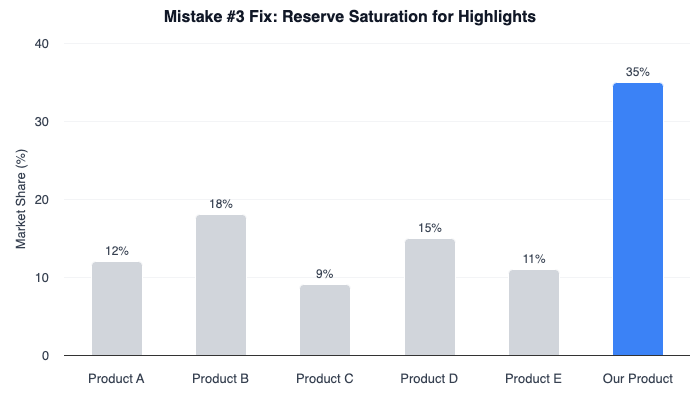

Mistake #3: Equal Saturation Everywhere

When everything is bold, nothing stands out. Fully saturated colors for all data series creates visual competition.

Fix: Reserve full saturation for highlights. Use muted versions for supporting data.

Mistake #4: Ignoring Background

Colors that work on white backgrounds may fail on dark backgrounds. A yellow that's vibrant on white becomes invisible on light gray.

Fix: Test on actual backgrounds. For dark modes, increase saturation and adjust lightness.

Mistake #5: Red-Green for Colorblind Audiences

The most common accessibility failure. Red-green combinations are invisible to 8% of men.

Fix: Use orange-blue, add patterns, or include text labels as backup.

Quick Reference: Ready-to-Use Palettes

Professional Blue

Safe, corporate, universally readable:

Vibrant Categorical

High-energy, distinct categories:

Accessible Diverging

Colorblind-safe for positive/negative:

Conclusion

Color in data visualization is a functional tool, not decoration. Every color choice either helps or hinders understanding. The palettes that "convert"—that actually communicate effectively—follow principles rooted in perception science, accessibility standards, and strategic visual hierarchy.

You don't need to be a designer to choose good colors. You need to understand your data type, your audience, and your message. With those in mind, the right colors become obvious choices rather than guesses.

Start with proven palettes. Test for accessibility. Create consistency. And always remember: if your color choices need explanation, they're not working. The best chart colors are invisible—viewers see the data, not the design.
