What Makes a Charting Library AI-Friendly: A Developer's Evaluation Framework

You paste a prompt into your AI assistant: "Create a bar chart showing quarterly revenue." Fifteen seconds later you get code. Sometimes it runs on the first try. Sometimes it hallucinates an API that hasn't existed since 2019. The difference isn't the AI model — it's the charting library.

Some libraries are structurally easy for language models to work with. Others fight the AI at every step. After testing thousands of AI-generated chart snippets across multiple LLMs, a clear pattern emerges: AI-friendliness is not an accident — it's a set of measurable traits.

This article gives you a concrete framework: seven traits you can score from 0 to 10. Apply it to any charting library and you'll know, before writing a single line of code, how well it will work with AI-assisted development.

Why AI-Friendliness Matters Now

The way developers discover, adopt, and use charting libraries has changed. A growing number of developers now ask an LLM to generate their chart code rather than reading documentation from scratch. If the AI can't produce working code for your library, developers move on to one it can.

This creates a new competitive dimension. A library can have the most powerful rendering engine in the world, but if Claude, GPT, or Gemini can't write correct code for it, adoption stalls. AI-friendliness isn't a nice-to-have anymore — it's table stakes.

The 7 Traits of an AI-Friendly Charting Library

After analyzing patterns across successful and failed AI-generated chart code, seven traits consistently separate the libraries that work well with AI from those that don't.

Trait 1: Declarative Configuration

This is the single biggest predictor of AI-friendliness. A declarative API lets you describe what you want (a bar chart with these categories, these colors, this title) rather than how to build it step by step.

Consider the difference:

// Declarative (AI-friendly) — Highcharts, ECharts, Plotly
{
  chart: { type: "bar" },
  title: { text: "Quarterly Revenue" },
  series: [{ data: [420, 535, 610, 720] }]
}

// Imperative (AI-hostile) — D3.js
const svg = d3.select("#chart").append("svg");
const xScale = d3.scaleBand().domain(data.map(d => d.label)).range([0, width]);
const yScale = d3.scaleLinear().domain([0, d3.max(data, d => d.value)]).range([height, 0]);
svg.selectAll("rect").data(data).enter().append("rect")
  .attr("x", d => xScale(d.label))
  .attr("y", d => yScale(d.value))
  .attr("width", xScale.bandwidth())
  .attr("height", d => height - yScale(d.value));

The declarative version is a single JSON object. The AI just needs to fill in the right keys. The imperative version requires the AI to remember method chains, scale functions, coordinate math, and DOM manipulation in the correct order. One missed step and nothing renders.

Trait 2: Predictable API Patterns

AI models learn patterns. Libraries with consistent, predictable naming conventions are dramatically easier for LLMs to generate correct code for.

Good pattern consistency means:

• Uniform option naming — if titles use { text: "..." }, subtitles should too, not a different shape
• Consistent nesting — colors, styles, and formatting live in the same place for every element
• Predictable defaults — omitted options produce reasonable results rather than errors

When patterns are inconsistent, the AI has to memorize special cases. Every special case is another chance for a hallucination.

Trait 3: Sensible Defaults

An AI-friendly library produces a good-looking chart with minimal configuration. The less the AI needs to specify, the less it can get wrong.

// Minimal config, maximum output — AI-friendly
Highcharts.chart('container', {
  series: [{ data: [1, 3, 2, 4] }]
});
// Result: fully rendered line chart with axes, grid, tooltip, legend

Compare this to libraries that require you to manually configure axes, scales, margins, padding, tick formatting, and tooltip behavior before anything appears on screen. Every required option is another opportunity for the AI to hallucinate a value or forget a property.

Trait 4: Rich, Structured Documentation

LLMs are only as good as their training data. Libraries with extensive, well-structured documentation produce better AI results because the model has seen more correct examples.

What matters most:

• Runnable code examples for every chart type and major feature
• Complete API reference with types, defaults, and descriptions for every option
• Cookbook/recipe patterns that show real-world configurations, not just toy examples
• llms.txt and Context7 support for runtime documentation access

Libraries that keep most knowledge in GitHub issues, Stack Overflow, or community forums rather than official docs suffer here. The training data is fragmented, often outdated, and mixed with wrong answers.

Trait 5: JSON-Serializable Configuration

Can the entire chart configuration be expressed as valid JSON? This sounds like a subset of "declarative," but it goes further. JSON-serializable configs can be:

• Stored in databases and passed between systems
• Generated directly by LLM function calling / tool use
• Validated against a schema before rendering
• Sent to server-side rendering endpoints

Libraries that require callbacks, function references, or class instances in their configs break this chain. The AI generates a JSON blob, but you can't actually use it without manually wiring up the imperative parts.

Trait 6: TypeScript Definitions

Strong TypeScript types serve double duty: they help human developers and they help AI models. When an LLM has seen type definitions during training, it learns the exact shape of valid configurations.

This means fewer hallucinated property names, correct value types, and proper nesting of options. Libraries with thorough .d.ts files or native TypeScript source produce measurably better AI-generated code.

Trait 7: Server-Side Rendering Support

AI workflows often don't have a browser. Chatbots, email generators, PDF builders, and automated reporting systems all need to create charts without a DOM. Server-side rendering (SSR) support makes a library usable in the full spectrum of AI-powered applications.

Libraries that are browser-only limit themselves to a shrinking portion of AI use cases. The most AI-friendly libraries offer official Node.js rendering, headless browser export, or dedicated export server endpoints.

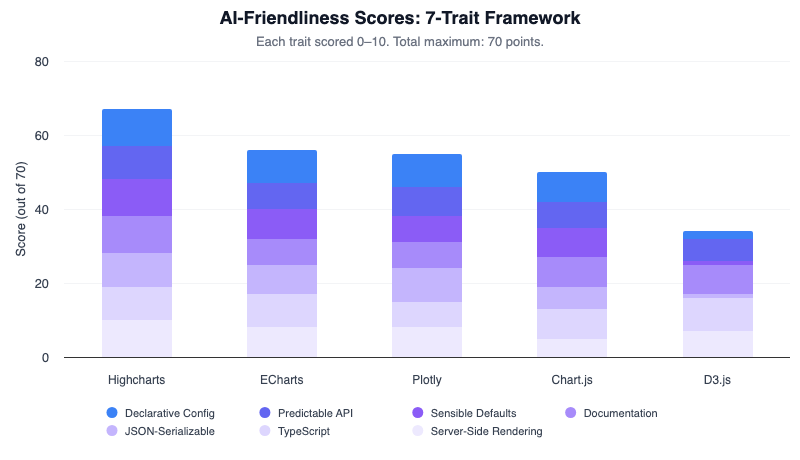

The Scorecard: Rating Popular Libraries

We applied this framework to the most popular JavaScript charting libraries. Each trait is scored 0-10, giving a maximum possible score of 70.

Trait	Highcharts	ECharts	Chart.js	Plotly	D3.js
Declarative Config	10	9	8	9	2
Predictable API	9	7	7	8	6
Sensible Defaults	10	8	8	7	1
Documentation	10	7	8	7	8
JSON-Serializable	9	8	6	9	1
TypeScript	9	9	8	7	9
Server-Side Rendering	10	8	5	8	7
Total (out of 70)	67	56	50	55	34

A few things stand out:

• Highcharts dominates because it was designed around a single configuration object decades before AI code generation existed. That architectural decision aged remarkably well.
• ECharts and Plotly score well thanks to their declarative APIs and server-side support, though documentation gaps hold them back in some categories.
• Chart.js is popular and well-documented but loses points on JSON serializability (callback-heavy configs) and server-side rendering (canvas-dependent).
• D3.js scores lowest not because it's a bad library — it's brilliant — but because its imperative, low-level API is the exact opposite of what LLMs handle well.

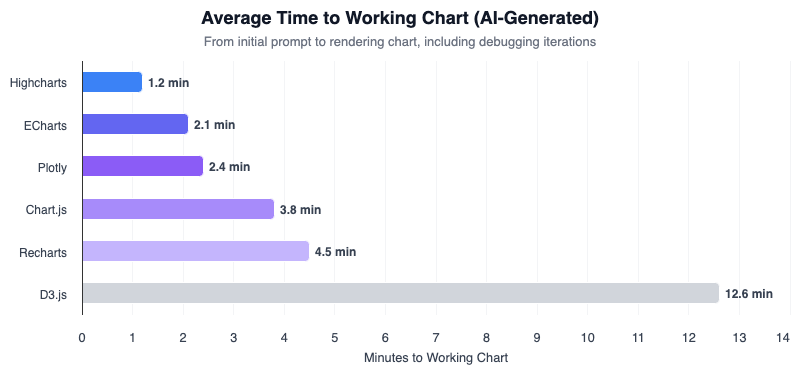

The Real-World Test: AI Generating Charts

Scores on paper are one thing. How do libraries actually perform when you hand a prompt to an LLM? We ran the same set of 10 chart prompts (bar, line, pie, scatter, stacked, combo, area, heatmap, gauge, and waterfall) through Claude, GPT-4, and Gemini, asking each to generate code for five libraries.

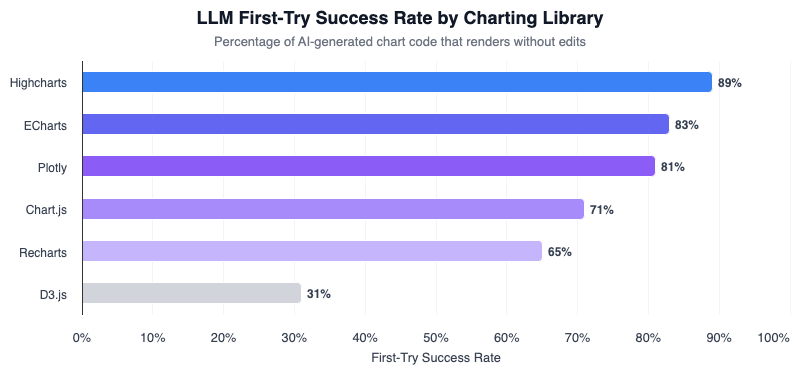

What We Found

Declarative libraries averaged 85% first-try success. Highcharts, ECharts, and Plotly all produced runnable code on the first attempt for most chart types. Failures were typically minor — a misspelled option name or a wrong default color — and took under a minute to fix.

Chart.js landed at around 70%. Basic charts worked well, but advanced configurations (stacked bars, combo charts, dual axes) often required callbacks that the AI generated incorrectly. Common error: generating Chart.js v2 syntax when v4 was intended.

D3.js averaged 30% first-try success. The AI could generate simple bar charts, but anything beyond that required significant manual correction. Scale configuration, axis rendering, and responsive sizing were the most common failure points.

Failure Patterns by Library Type

Failure Type	Declarative Libs	Imperative Libs
Wrong option name	Common, easy fix	Less common
Outdated API version	Occasional	Very common
Broken rendering logic	Rare	Very common
Missing dependencies	Rare	Common
Completely non-functional	Very rare	Common

When declarative library code fails, the fix is usually a single property name change. When imperative library code fails, the fix often requires restructuring the entire approach.

How to Apply the Framework to Your Stack

You don't have to switch libraries. Use this framework to understand where your current library's weaknesses are and build guardrails around them.

If Your Library Scores Below 40

• Create wrapper abstractions — build a declarative config layer on top of the imperative API, then teach the AI to target your wrapper
• Maintain a prompt library — curate tested prompts that reliably produce correct code for your specific library version
• Pin your version — tell the AI the exact version number in every prompt to reduce hallucinations from older API shapes

If Your Library Scores 40-55

• Provide context — include a few working examples in your prompt to ground the AI's output
• Use llms.txt or Context7 — if your library supports runtime documentation access, enable it in your AI tools (see our llms.txt guide)
• Focus prompts on core chart types — the AI handles basic charts well but struggles with edge cases

If Your Library Scores 55+

• Use it confidently — high-scoring libraries produce correct AI-generated code the vast majority of the time
• Enable MCP integrations — if available, connect the library's MCP server for even better results
• Consider complex charts — the AI can reliably handle advanced chart types, dual axes, drill-downs, and interactive features

The Prompt Engineering Angle

Even with a high-scoring library, prompt quality matters. Here are the patterns that consistently produced better chart code across all libraries:

Specify the library and version

// Bad prompt
"Make a bar chart of monthly sales"

// Good prompt
"Using Highcharts 11, create a column chart showing monthly sales
for Jan-Jun 2026 with values [42000, 53000, 48000, 61000, 55000, 72000].
Format y-axis as USD with thousands separator."

Include data shape

Don't make the AI guess your data format. Include a sample row or describe the structure explicitly. The more specific you are about data shape, axis formatting, and visual requirements, the fewer iterations you'll need.

Request the config object, not the full page

Asking for "a complete HTML page with a chart" produces boilerplate that's hard to integrate. Ask for just the configuration object or component code. This keeps the AI focused on what matters.

What Library Maintainers Should Do

If you maintain a charting library, here's how to improve your AI-friendliness score:

1. Publish an llms.txt file — give LLMs a structured entry point to your documentation. It takes an afternoon to create and immediately improves AI code generation quality.
2. Register with Context7 — Upstash's MCP server indexes your docs and serves version-specific content to AI models at inference time.
3. Build an MCP server — let AI tools call your library's rendering engine directly, validating configs and returning results in real-time.
4. Add more code examples to docs — every example the LLM trains on is another pattern it can reproduce correctly.
5. Maintain exhaustive TypeScript types — these serve as machine-readable API documentation.
6. Provide a JSON schema for your configuration format — this enables validation before rendering and helps AI tools constrain their output.

The Bigger Picture: API Design Is AI Design

The traits that make a library AI-friendly are the same traits that have always made libraries developer-friendly: clear APIs, good defaults, consistent patterns, and thorough documentation. AI hasn't changed what good library design looks like — it's just raised the stakes.

A developer encountering a confusing API might spend 30 minutes on Stack Overflow and figure it out. An AI encountering a confusing API hallucinates. There's no "figuring it out" — either the pattern is clear from training data, or the AI generates wrong code.

This means the libraries that invested in clean API design, comprehensive docs, and predictable conventions years ago are now reaping an unexpected reward: they work better with AI, which means more developers are adopting them through AI-assisted workflows.

Conclusion

AI-friendliness in charting libraries comes down to seven measurable traits: declarative configuration, predictable API patterns, sensible defaults, rich documentation, JSON serializability, TypeScript definitions, and server-side rendering support.

Use the scoring framework in this article to evaluate your current charting library — or to choose your next one. The gap between AI-friendly and AI-hostile libraries isn't subtle: it's the difference between 85% first-try success and 30%.

The best part? These traits aren't locked in. Library maintainers can improve their scores by adding llms.txt files, publishing MCP servers, improving documentation, and investing in declarative APIs. The libraries that adapt will capture the growing wave of AI-assisted development. The ones that don't will increasingly be left out of the conversation — literally.

---
